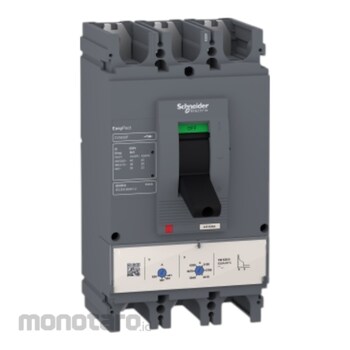

Schneider Electric Circuit Breaker EasyPact CVS630F
#Grup produk P111965773
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp14.999.900 - Rp17.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Breaking Capacity Code | F |
|---|---|
| Device Application | Distribution |
| Device Short Name | CVS630F |
| Earth Leakage Protection (Vigi Add On) | Without |
| Network Frequency (Hz) | 50/60 |
| Network Type | AC |
| Product Range | EasyPact CVS400-630 |
| Product or Component Type | Circuit breaker |
| Protected Poles Description | 3D |
| Protection Type | Short-circuit protection (magnetic); Overload protection (thermal) |
| Range | EasyPact |
| Trip Unit Name | TM-D |
| Trip Unit Rating (A) | 630 at 40°C |
| Trip Unit Technology | Thermal-magnetic |
| Utilization Category | Category A |
| [Ics] Rated Service Breaking Capacity (kA) | 40 at 220/240V AC 50/60Hz conforming to IEC 60947-2; 36 at 380/415V AC 50/60Hz conforming to IEC 60947-2; 23 at 440V AC 50/60Hz conforming to IEC 60947-2 |
| [Icu] Breaking Capacity (kA) | 40 Icu at 220/240V AC 50/60Hz conforming to IEC 60947-2; 36 Icu at 380/415V AC 50/60Hz conforming to IEC 60947-2; 30 Icu at 440V AC 50/60Hz conforming to IEC 60947-2 |
| [In] Rated Current (A) | 630 at 40°C |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 8 conforming to EN/IEC 60947-2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
EasyPact CVS630F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 415VAC 50/60Hz. This product embeds a 630A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. EasyPact CVS630F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
