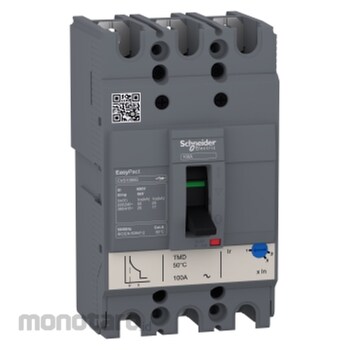

Schneider Electric Circuit Breaker EasyPact CVS100BS
#Grup produk P111965755
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp2.099.900 - Rp3.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Breaking Capacity Code | BS |
|---|---|
| Device Application | Distribution |
| Device Short Name | CVS100BS |
| Earth Leakage Protection (Vigi Add On) | Without |
| Network Frequency (Hz) | 50/60 |
| Network Type | AC |
| Product Range | EasyPact CVS100-160 |
| Product or Component Type | Circuit breaker |
| Protected Poles Description | 3D |
| Range | EasyPact |
| Suitability For Isolation | Yes |
| Trip Unit Name | TM-D |
| Trip Unit Technology | Thermal-magnetic |
| Utilization Category | Category A |
| [Icu] Breaking Capacity (kA) | 25 Icu at 440V AC 50/60Hz conforming to IEC 60947-2; 25 Icu at 415V AC 50/60Hz conforming to IEC 60947-2; 50 Icu at 200/240V AC 50/60Hz conforming to IEC 60947-2; 25 Icu at 380/400V AC 50/60Hz conforming to IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 8 conforming to EN/IEC 60947-2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
EasyPact CVS100BS is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. EasyPact CVS100BS current-limiting technology greatly reduces damage to installation caused by short-circuit current. This product embeds a 16A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. EasyPact CVS100BS is compliant with international standards (IEC 60947, CCC, EAC).
