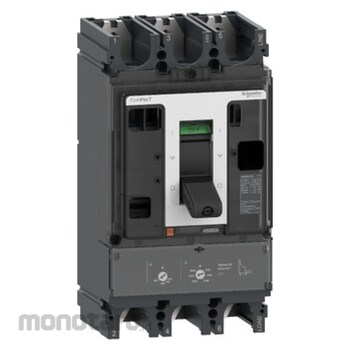

Schneider Electric Circuit Breaker ComPacT NSX630F DC
#Grup produk P111965612
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp32.999.900 - Rp41.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Circuit Breaker Mounting Mode | Fixed |
|---|---|
| Control Type | Toggle |
| Device Application | Distribution |
| Device Short Name | NSX630F DC |
| Network Type | DC |
| Performance Level | F 36 kA 750 V DC |
| Product or Component Type | Circuit breaker |
| Range | ComPacT |
| Suitability For Isolation | Yes conforming to EN/IEC 60947-2 |
| Trip Unit Name | TM-DC |
| Trip Unit Protection Functions | LI |
| Trip Unit Technology | Thermal magnetic |
| Utilization Category | Category A |
| [Icu] Rated Ultimate Short-Circuit Breaking Capacity (kA) | 36 Icu at 24-125V DC 1 pole conforming to IEC 60947-2; 36 Icu at 250V DC 1 pole conforming to IEC 60947-2; 36 Icu at 500V DC 2 poles in series conforming to IEC 60947-2; 36 Icu at 750V DC 3 poles in series conforming to IEC 60947-2 |
| [Ue] Rated Operational Voltage (V) | 750 DC |
| [Ui] Rated Insulation Voltage (V) | 750 DC conforming to IEC 60947-2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
ComPacT NSX 500F DC is a complete 3 pole fixed circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The operational voltage is 750VDC. This product embeds a 500A rated thermal-magnetic trip unit (TM-DC). TM-DC trip unit provides an adjustable thermal overload protection and an adjustable magnetic protection. This 3 poles version (255mm x 140mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.
