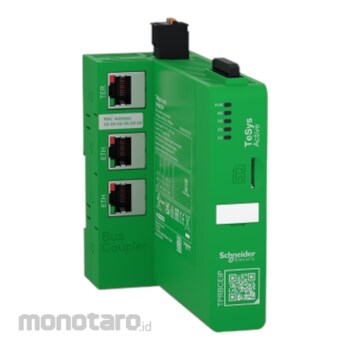

Schneider Electric Bus Coupler TeSys Island 24VDC
#Grup produk P111965171
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp8.699.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connections - Terminals | Power supply: removable spring terminal block 2 cable(s) 2.5 mm² (AWG 14) rigid or flexible |
|---|---|
| Cybersecurity | Achilles certified |
| Device Presentation | Point of connection between a group of starters and an automation controller; Management of the complete island up to 20 modules |
| Device Short Name | TPRBC |
| Mounting Mode | Horizontal and vertical (35 mm symmetrical rail) |
| Power Dissipation (W) | 7 maximum |
| Product Compatibility | TPRST motor starter; TPRSS SIL motor starter; TPRPM power module; TPRSM SIL interface module; TPRVM voltage interface module; TPRAN analog IO module; TPRDG digital IO module |
| Product or Component Type | Bus coupler |
| Protection Type | External fuse, 3 A fast fuse for power supply; Reverse polarity protection for power supply |
| Range | TeSys |
| Rated Current (A) | 3 Maximum |
| Standard | EN/IEC 60947-4-1; CSA C22.2 No 61010-2-201; UL 61010-2-201; EN/IEC 61010-2-201 |
| Supply Voltage Limits (V) | 20.4-28.8 DC |
| Width (mm) | 50 |
| [Us] Rated Supply Voltage (V) | 24 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over EtherNet/IP or Modbus TCP. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for EtherNet/IP or Modbus TCP, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified, Green Premium compliant (RoHS/REACh).
