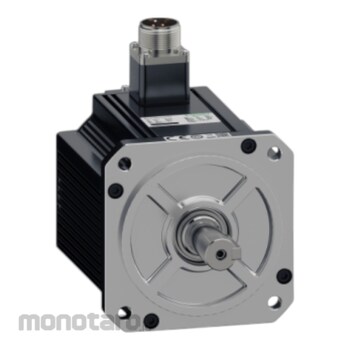

Schneider Electric BCH18 Servo Motor 2.0kw Medium Inertia
#Grup produk P111964710
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp19.999.900 - Rp22.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Axis Length (mm) | 55 |
|---|---|
| Continuous Power (W) | 2000 |
| Continuous Stall Current (A) | 11.7 |
| Continuous Stall Torque (N ⋅ m) | 9.55, 220V |
| Feedback Type | 23 bits optic incremental encoder |
| Key Width (mm) | 8 |
| Maximum Constant Current (A) | 36 |
| Maximum Current Irms (kA) | 2.0, 220 |
| Maximum Mechanical Speed (rpm) | 3000 |
| Maximum Stall Torque (Nm) | 28.65, 220V |
| Nominal Output Power (W) | 2000, 220V |
| Nominal Speed (rpm) | 2000, 220V |
| Product Short Name | BCH18 |
| Product Type | Servo Motor |
| Rated Torque (N m) | 9.55, 220V |
| Scope of Application | Easy Lexium 18; Motion servo drive Motion servo motor Motor 2.0kW, 220V |
| Shaft Diameter (mm) | 22.0 |
| Shaft End | Parallel Key |
| [Us] Rated Supply Voltage (V) | 220 |
