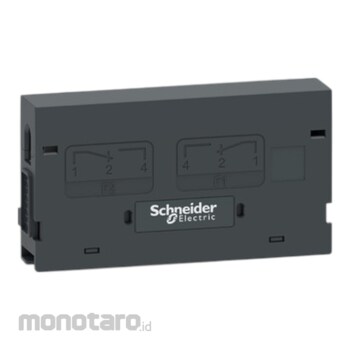

Schneider Electric auxiliary Contact TransferPacT Indication for Source I and Souce II
#Grup produk P111964118
Kondisi Barang:
Authorized Partner
Spesifikasi
| Auxiliary Contact Composition | 2 NO + 2 NC |
|---|---|
| IP Degree of Protection | IP20 |
| Product Range | TransferPacT |
| Product or Component Type | Auxiliary Contact Module |
| Signalling Function | Switch position (SI and SII) |
| Tightening Torque (N m) | 0.6 +/- 0.1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TPSAUX32 is auxilary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on source 1 or source 2 for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The rated operational current(Ie) is provided 2A@250VAC. It is mounted mode "clip-on" side by side on the right of transfer switch. This wiring capacity is 0.75-2.5 mm²(18-14 AWG) with PZ2 screw driver.
