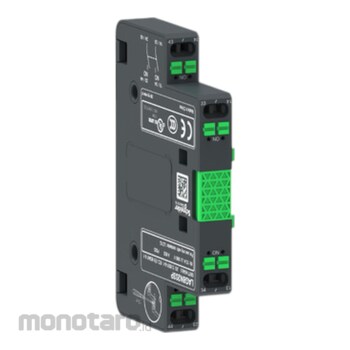

Schneider Electric Auxiliary Contact Block
#Grup produk P111964039
Kondisi Barang:
Authorized Partner
Spesifikasi
| Auxiliary Contacts Operation | Instantaneous |
|---|---|
| Connections - Terminals | Screw clamp terminals0.75-2.5 mm²solid stranded without cable end ; Screw clamp terminals0.75-2.5 mm²flexible with cable end |
| Device Short Name | LAG8N |
| Insulation Resistance (MΩ) | > 10 |
| Irms Rated Making Capacity (A) | 140 (AC conforming to IEC 60947-5-1); 250 (DC conforming to IEC 60947-5-1) |
| Mechanical Durability (Mcycles) | 8 |
| Minimum Switching Current (mA) | 1 |
| Minimum Switching Voltage (V) | 17 |
| Mounting Location | Side |
| Non-Overlap Time (ms) | 1.5 (on de-energization no overlap between NC and NO contact); 1.5 (on energization no overlap between NC and NO contact) |
| Permissible Short-Time Rating (A) | 100 (60 °C 1 s); 120 (60 °C 500 ms); 140 (60 °C 100 ms) |
| Product Range | TeSys G |
| Product or Component Type | Auxiliary contact block |
| Protection Type | GG fuse 10 A |
| Range | TeSys |
| Range Compatibility | TeSys G LC1G |
| [Ith] Conventional Free Air Thermal Current (A) | 10 (at 60°C) |
| [Ue] Rated Operational Voltage (V) | 600 AC 25-400Hz |
| [Ui] Rated Insulation Voltage (V) | 600 conforming to IEC 60947-5-1 ; 600 - certifications CSA ; 600 - certifications UL |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These accessories are auxiliary contact block 2NO for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed for side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operating ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
