Schneider Electric ARC Protection Relay
#Grup produk P111963933
Kondisi Barang:
Authorized Partner
Sebelum PPN:
Rp14.999.900 - Rp24.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connections - Terminals | Removable screw terminal block |
|---|---|
| Control Function | Switchgear internal arc detection |
| Mounting | Flush; DIN rail |
| Product or Component Type | Arc fault detection device |
| Protection Type | Arc suppression 50ARC |
| Range | PowerLogic |
| Relay Application | Arc flash |
| Total Depth (mm) | 126 |
| Total Height (mm) | 135 |
| Type of Measurement | Arc |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

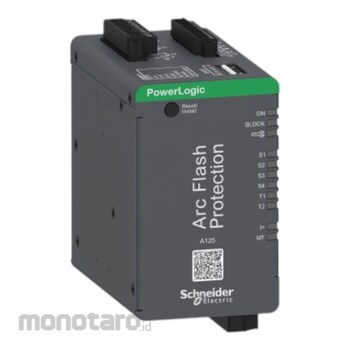

The Schneider Electric PowerLogic A125 offer an arc flash mitigation solution for electrical cubicles. Designed to protect a multiple electrical panels or switchboards and it can be installed in LV or MV cubicles. Based on light detection, the device can support 4 light sensors to detect the fault in different zones. Thanks to fast detection, the device will control the switching devices in shorter time thanks to high speed outputs. To avoid noisy tripping due to parasite lights, a current condition input is available as a second tripping condition. The PowerLogic A1 can be supplied by large scale range : 24 VAC to 240 VAC or 24 VDC to 240 VDC network. Product provides multiple trip outputs : 1 high speed output, 1 relay. It can be installed on DIN rail or flush panel with a mounting accessory frame REL52903.
