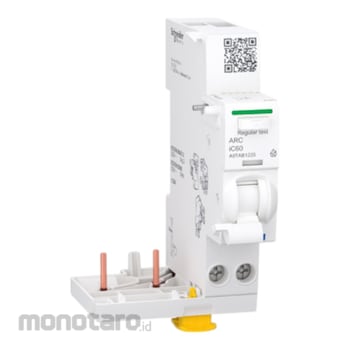

Schneider Electric ARC Fault Detection Add-on Block

This Acti9 ARC iC60 product is an arc fault detection add-on block. It is a 2P with 2 protected poles and 25A In rated current. This add-on block can be associated with any Acti9 iC60 miniature circuit breaker with rated current from 6A to 25A and B Curve or C curve. Its 2 unique VisiTrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 250VAC. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. This product is compliant with EN/IEC 62606 standard.
