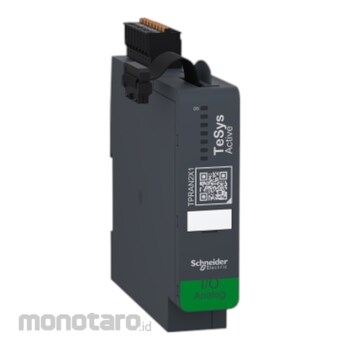

Schneider Electric Analog IO Module
#Grup produk P111963234
Kondisi Barang:
Authorized Partner
Spesifikasi
| Analog Input Resolution | 15 bits + sign full scale |
|---|---|
| Analog Output Resolution | 12 bits, 4-20 mA full scale; 12 bits, 0-20 mA full scale; 12 bits, 0-10 V full scale; 11 bits + sign, - 10-10 V full scale |
| Analog Output Type | Current 4-20 mA; Current 0-20 mA; Voltage 0-10 V; Voltage - 10-10 V |
| Analogue Input Number | 2 isolated with common point |
| Analogue Output Number | 1 isolated |
| Current Consumption (mA) | 160 |
| Device Presentation | IO module providing 2 analog inputs and 1 analog output; Enabling advanced control functions in a TeSys island system; Operational only when connected to a bus coupler TPRBC |
| Device Short Name | TPRAN |
| Function of Module | Measurement of voltage, current or temperature on 2 configurable analog inputs; Driving voltage or current source on 1 configurable analog output |
| Input Impedance | <= 50 Ohm current; >= 1 MOhm voltage; >= 1 MOhm thermocouple; >= 1 MOhm temperature probe |
| Local Signalling | 1 LED (green/red) for DS (device status) |
| Power Dissipation (W) | 0.5 maximum |
| Product Certification | CSA; UL; EAC (pending) |
| Product Compatibility | TPRBC bus coupler |
| Product or Component Type | Analog IO module |
| Range | TeSys |
| Standard | IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Type of Cable | Twisted shielded pairs cable <30 m for input/output circuit |
| [Uimp] Rated Impulse Withstand Voltage (kV) | 0.5 conforming to IEC 61010-1 |
| [Us] Rated Supply Voltage (V) | 24 DC supplied by the bus coupler |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys island analog IO module, 2 analog inputs, 1 analog output. Connected to a TPRBC bus coupler it is used for advanced control functions (TeSys avatars). Two analog inputs can be configured for measurement of voltage (-10/+10V, 0/+10V), current (0-20mA, 4-20mA) or temperature probes (Ni, Pt, thermocouples). One analog output can be configured for driving voltage source (-10/+10V, 0/+10V) or current source (0-20mA, 4-20mA). Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
