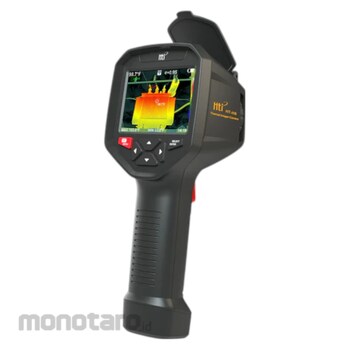

HTI Instrument Thermometer Thermal Imager

Sebelum PPN:
Rp36.999.900
Spesifikasi
Automatic Power Off Time (minute)Selectable: 5 /20 / not power off automatically
Color PaletteRainbow, iron oxide red, cold color, black & white, white & black
Dimension (LxWxH) (mm)97x129x256
Display Screen3.5-inch full angle TFT display screen
Display Screen Resolution640x480
EmissivityAdjustable from 0.01 to 1.0
Field Angle (°)28.4x21.4 /13mm
File FormatJPG
Focus ModeFocal length adjustment
Frame Rate of Thermal Images (Hz)25
Infrared Image Resolution384x288
Measurement Accuracy (%)±2 digital/±2°C
Power SupplyBuilt-in chargeable 26650 battery
Storage mediumBuilt-in 3G (above 20 thousand image stored)
Temperature Measurement Range (°C)-20 to 550
Thermal Sensitivity (°C)0.06
USB interfaceMicro USB 2.0
View OptionThe integration of thermal image with 25% step length and visible image.
Visible Image Resolution (pixel)300000
Wavelength Coverage (µm)8-14

Pilih jenis produk yang diinginkan

Nomor SKU Model Number Masa Persiapan Barang Harga Jumlah
Loading...
ask-button

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description
HT-H38 is an upgraded version of HT-H8, with analysis software and video recording function.
With WIFI, real-time imaging on mobile devices.
- Infrared Thermal Imaging Camera – This IR camera features a 3.5" full-view TFT screen that provides high-definition color clarity with maximum and minimum temperature ranges, current emissivity and other vital and measurable thermal data.
- Quick-Access Selection Key – The all-in-one design features an easy-to-grip handle and a key operation system right below the screen to help you capture images, select color palettes, measure temperature range conversion, and manage captured images.
- Residential and Industrial Use – With a measurement accuracy of ±3% this thermal imaging gun can be used in a variety of applications including HVAC heating and air, general electrician work, weather measurements, science and farming, and more.
- Superior Color Clarity and Accuracy – The HT-series Hti thermal imaging camera lets you quickly swap between rainbow, iron oxide red, cold color, white heat and black heat to give you more accurate data and thermal information.
Warning
To measure short-distance objects, and to measure long-distance objects, you must use different focal lengths, slowly rotate the lens, not too much in the same direction.
