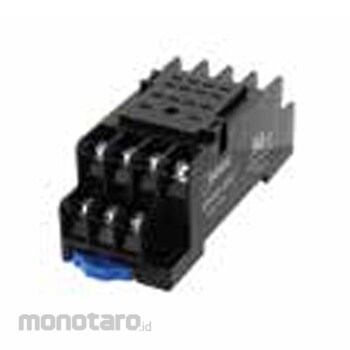

IDEC DIN Rail Mount
#Grup produk P111955280
Spesifikasi
| Applicable Crimping Terminal (mm²) | 1.25x2 |
|---|---|
| Applicable Standard | UL508, CSA C22.2 No.14, IEC61984 |
| Applicable Wire (mm²) | 0.5 to 2.5 |
| Dielectric Strength (V) | 2000 AC, 1 minute |
| Insulation Resistance (MΩ) | 100 minimum (500V DC megger) |
| Number of Poles | 4-Pole |
| Operating Humidity (%RH) | 35 to 85 (no condensation) |
| Operating Temperature (°C) | -49 to +70 (no freezing) |
| Rated Current (A) | 6 |
| Rated Insulation Voltage (V) | 300 |
| Recommended Tightening Torque (N m) | 0.8 |
| Relay Socket | RU4S/RY4 |
| Screw Terminal Style | M3 slotted Phillips screw |
| Vibration Resistance Frequency (Hz) | 10 to 55, amplitude 1.0mm |
