As a pioneer in cartridge heaters, we have a long history of sales. We also handle products that comply with UL/CSA standards.
Standard heaters are manufactured with an internal temperature of 680°C for regular use.
The lead is firmly crimped, so it is designed to withstand mechanical vibrations and impacts.

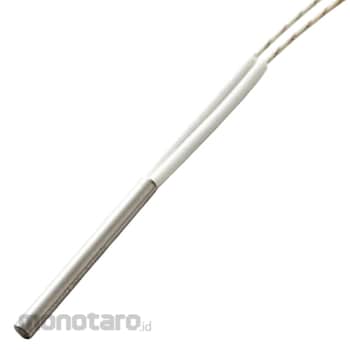

Sakaguchi Electric Heat Cartridge Heater HI-SD Rod
#Grup produk P111945423
Spesifikasi
| Diameter (mm) | phi 6 |
|---|---|
| Length (mm) | 30 |
| Voltage (V) | 110 |
| Capacity (W) | 50 |
| Tolerance | Overall length: ±2% (minimum ±2.4mm) |
| Capacity Tolerance | (Up to 100W) ±15%, (Up to 1000W) ±10% (cold resistance value conversion) |
| Heat Density (W/cm²) | 14 |
| Heat Resistance Temperature (°C) | 200 (Lead Wire) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*When inserting the HI-SD rod cartridge heater into a mold or hot plate with holes, heat the heater with the clearance between the heater outer diameter and the hole diameter as small as possible.*For hole processing, reaming is performed to ensure tight hole accuracy, and after processing, the surface should be thoroughly cleaned to remove any oil and other substances before inserting the heater.
*High insulation properties are maintained by using the heater at surface temperatures of 400°C or less.
*When tightening the set screw (set screw/grub screw), please be careful when using the product as tightening too hard to the point where the product deforms, which may damage the internal components of the product.
