BOQU Residual Chlorine Analyzer
#Grup produk P111941612
Spesifikasi
| Ambient Temperature (°C) | 0~60 |
|---|---|
| Control interface | two groups of ON/OFF relay contact, divided into high and low alarm signal photoelectric isolation output. |
| Dimensions (mm) | 96x96x156 |
| Electric Apparatus | Relay lag quantity any setting, relay load 3A 220VAC/24VDC. |
| Hole size (mm) | 91x91 |
| Manual/Automatic Temperature Compensation (°C) | 0~60 |
| Measuring Range (mg/L) | 0-20 or 0-2 |
| Measuring Range (°C) | Temperature : 0~60 |
| Output Load (ohm) | load <500 (0-10mA), load <750 (4-20mA) |
| Precision (%) | better than ±1 or ±0.01mg/L |
| Precision (°C) | ±0.5 |
| Protection Level | IP65 |
| Relative Humidity (%RH) | 90 or less |
| Relay | Third group relay, automatic cleaning control function analog output. |
| Resolution (mg/L) | 0.01 |
| Resolution (°C) | 0.1 |
| Signal Isolation Output (mA) | Photoelectric coupler isolation protection 4~20 signal output. |
| Voltage/Frequency (V/Hz) | 220 AC plus or minus 10%, 50/60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

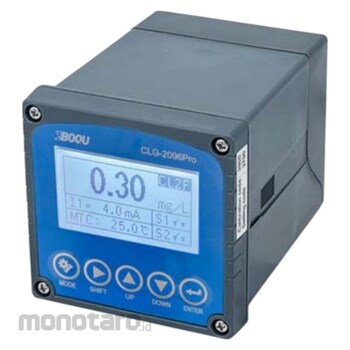

CLG-2096Pro is a total new industrial residual chlorine analyzer, with high intelligence, sensitivity. It can measure residual chlorine and temperature simultaneously. It is widely used in such industries as thermal power plant, running water, pharmaceutical, drinking water, water purification, industrial pure water, swimming pool disinfection residual chlorine continuous monitoring.
Feature
1. Measurement principle: constant pressure 2. Large LCD screen
3. Several parameters display at the same time: Dissolved ozone values, Temperature value,current and has range transfinite tip.
4. Has function of backing to factory setting.
5. Manual/automatic temperature compensation
6. Isolation 4-20mA output
