Based on the absorption of ultraviolet light by organic matter, spectroscopic organic material online sensor adopts the 254 nm spectral absorption coefficient SAC254 which is used to reflect the important measurement parameters of the soluble organic matter content in water, and it can be converted into COD value under certain conditions. This method allows for continuous monitoring without the need for any reagents. It is widely used in the continuous monitoring of organic matter load in the sewage treatment process, on-line real-time monitoring of inlet and outlet water quality of sewage plant; continuous on-line monitoring of surface water, drainage of waste water from industrial and fishery fields. Technical parameters are shown in table 1.

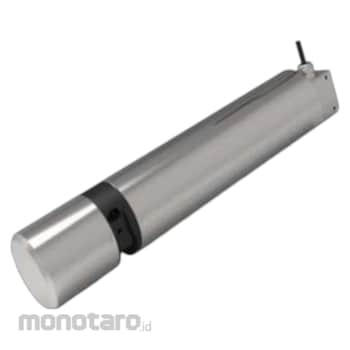

BOQU Online UV COD Sensor
#Grup produk P111941418
Spesifikasi
| Accuracy (%) | ± 5 |
|---|---|
| Body Material | Sensor : SUS316L (fresh water), Titanium alloy (Ocean marine) |
| Cable Length (m) | Standard: 10, the maximum may be extended to 100 |
| Cable Material | PUR |
| Measuring Range (mg/L) | 0~2000 COD (2mm Optical Path), 0~1000 COD (5mm Optical Path), 0~90 COD (50mm Optical Path) |
| Measuring Range (°C) | 0-45 (Non-freezing) |
| Pressure Range (MPa) | ≤0.4 |
| Protection Level | IP68/NEMA6P |
| Repeatability (%) | ± 2 |
| Resolution (mg/L) | 0.01 |
| Storage Temperature (°C) | -15 to 50 |
