BOQU Industrial Total Phosphorus Analyzer
#Grup produk P111941153
Spesifikasi
| Accuracy (%) | ±0.05mg/L when measured value ≤0.5mg/L; ±10 when measured value >0.05mg/L |
|---|---|
| Ambient Temperature Range (°C) | It should be indoor and temperature can be adjustable. The recommend temperature is +5~28 |
| Calibration Period (day) | Adjustable in 1~99 |
| Data Saved | The data can be saved when abnormal alarms and power off. |
| Dimension (LxWxH) (mm) | 450x510x1450 |
| Display | Touch screen and Command Input |
| Maintenance Period | Usually one time per month and 30minutes each time |
| Measurement Period (minute) | The minimum measurement period is 50, according to the actual water sample, The digestion time can be modified from 5 to 120. |
| Measuring Range (mg/L) | 0-2; 0.1-10; 0.5-50; 1-100; 5-500 |
| Output (mA) | 4~20 (2 ways) RS232, RS485 |
| Relative Humidity (%RH) | It should be indoor and temperature can be adjustable. The recommend humidity ≤90 (no dew) |
| Repeatability (%) | ≤±5% |
| Sampling Period | Time interval (55~9999min adjustable by yourself) and Integral time measurement mode; |
| Stability (%) | ≤±10 in 24hours |
| Standard | Total Phosphorus Ammonium Molybdate Spectrophotometric Method |
| Voltage/Frequency (V/Hz) | AC220±10%, 50±10% |
| power current (A) | 5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

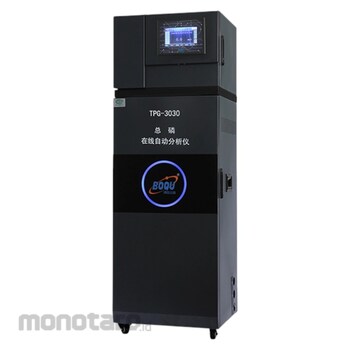

TPG-3030 online phosphorus meter is developed by BOQU Instrument, BOQU has completely independent intellectual property right.it's the world-class instrument to measure toal nitrogen.This total nitrogen analyzer is simple to measure, and the sample to be tested does not need any pretreatment. The water sample riser can be directly inserted into the system water sample to measure the total nitrogen concentration. The maximum measuring range of the equipment is 0~500mg/L TP. This method is mainly used for online automatic monitoring of total nitrogen concentration such as waste (sewage) water discharge point source and surface water.
