The digital chlorophyll sensor uses the characteristic that chlorophyll A has absorption peaks and emission peaks in the spectrum. It emits monochromatic light of a specific wavelength and irradiates water. The chlorophyll A in water absorbs the energy of the monochromatic light and releases a monochromatic light of another wavelength Color light, the intensity of light emitted by chlorophyll A is proportional to the content of chlorophyll A in water.
This sensor help consultants and researchers more effectively measure chlorophyll a.
Chlorophyll a is a measure of the amount of algae growing in a waterbody. It can be used to classify the trophic condition of a waterbody

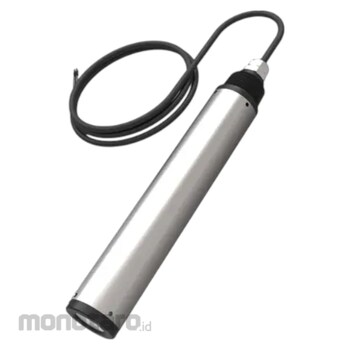

BOQU Digital Chlorophyll A Sensor
#Grup produk P111940756
Spesifikasi
| Accuracy (%) | ±5 |
|---|---|
| Cable Length (m) | Standard 10, can be extended to 100 |
| Calibration | Deviation calibration, slope calibration |
| Material | SS316L (Ordinary )Titanium Alloy (Seawater ) |
| Measurement range (μg/L) | 0-500 chlorophyll A |
| Operating Temperature (°C) | 0~45 |
| Power (V) | 12DC |
| Pressure Range (MPa) | ≤0.4 |
| Protection Class | IP68 |
| Protocol | MODBUS RS485 |
| Repeatability (%) | ±3 |
| Resolution (μg/L) | 0.01 |
| Size (mm) | 37x220 (Diameterxlength) |
| Storage Temperature (°C) | -15~50 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
More accurate, reliable data: Integrated Optical Compensation to compensate for LED drift over temperature and time, Ambient Light Rejection for more reliable performance, and Isolated Optical Frequencies to minimize interference and improve accuracy.Less maintenance: Internal diagnostics, lower calibration solution volume and one- or two-point calibration means you spend less time on maintenance.
Reduced monitoring costs: Install only the sensors you need, so you don’t have to buy what you won’t use.
Ease of use: Sensors retain calibration data so you can use them in any sonde.
Versatile applications: chlorophyll A in water plant imports, drinking water sources, aquaculture, etc ; online monitoring of chlorophyll A in different water bodies such as surface water, landscape water, and seawater.
