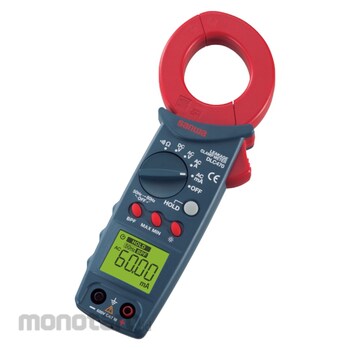

Sanwa Multifunctional Leakage Clamp Meter
#Grup produk P111940473
Spesifikasi
| Bandwidth (Hz) | 40-400 |
|---|---|
| Battery | LR03x2 |
| Battery Life (hour) | Approx. 42 (Alkaline battery/Backlight off) |
| Best Accuracy | ACmA = ± (1.2%+5); ACA = ± (1.2%+5); ACV = ± (1.2%+5); DCV = ± (1.0%+2); Resistance = ± (1.0%+8) |
| Clamp Diameter (mm) | 35 |
| Conductor Size (mm) | 10x40 |
| Continuity (ohm) | Buzzer sounds at 30 or below |
| Display | 6000 (A/V) /9999 (Ω) |
| Measuring Range | ACmA = 60.00mA/600.0mA; ACA = 60.00A/400.0A; ACV = 600.0V; DCV = 600.0V; Resistance = 999.9Ω |
| Open Voltage (V) | Approx. 0.9 |
| Resolution | ACmA = 0.01mA; ACA = 0.01A; ACV = 0.1V; DCV = 0.1V; Resistance = 0.1Ω |
| Safety Standard | IEC61010 CAT.III600V |
| Sampling Rate (time/s) | 2 |
| Size (mm) | 206x83x38 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Extract frequency range of mainly ACmA 50Hz/60Hz and ACA, with band-pass filter (BPF) function.- MAX/MIN value hold
- Auto power off (30 min./Cancelable)
- Leakage current measurement resolution 0.01mA
