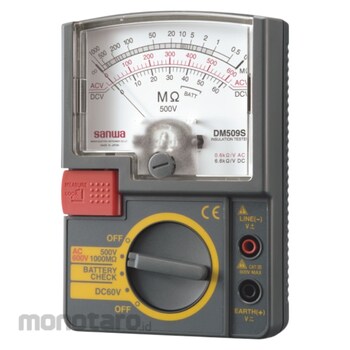

Sanwa Analog Insulation Tester (Pengukur Isolasi)
#Grup produk P111940233
Spesifikasi
| AC Rectifier Form | Half-wave rectification (Mean value indication rms value converted) |
|---|---|
| Accuracy relative humidity (%) | 75 or below No condensation |
| Altitude (m) | 2000 or less, environmental pollution degree II |
| Battery | 6LR61 (9V) x 1 |
| Battery Consumption | Checked by BATTERY CHECK Range |
| Best Accuracy | MΩ (InsulationResistance) = 1st effective measurement range = ±5% of full scale, 2nd effective measurement range = ±10% of full scale; DCV = ±5% of full scale; ACV = ±5% of full scale |
| IP Rate | IP20 |
| Measuring Current (mA) | 1 to 1.2 |
| Measuring Range | MΩ (InsulationResistance) = 500V/1000MΩ; DCV = 60V; ACV = 600V |
| Meter Type | Internal magnet, Taut-band meter (24μA) |
| Operating Humidity (%RH) | 80 or below No condensation |
| Operating Temperature (°C) | 0 to 43 |
| Power Consumption (W) | Approx. 2.0 to 2.8 (At 500V/100MΩ range) |
| Size (mm) | 144x99x43 |
| Storage Humidity (%RH) | 70 or below No condensation |
| Storage Temperature (°C) | -10 to 50 |
| Temperature Accuracy (°C) | 23±5 |
| Voltage (V) | EN61010-1 CAT.II = 1000; EN61010-1 CAT.III = 600 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This instrument is a DC insulation resistance tester to measure the insulation resistance of electric lines and electric equipment.
Feature
- Test voltage DC500V- One-shot or continuous measurement push switch
- DCV measurement range(DC60V)
- Auto discharge function
- Inner battery check range
- ACV measurement range
