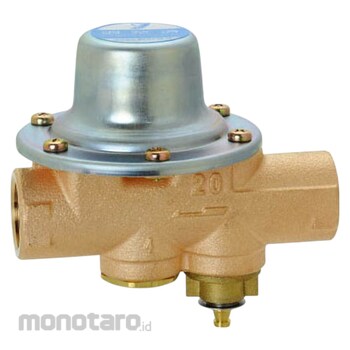

Yoshitake Water Pressure Reducing Valve (Cold Area Specification)
#Grup produk P111939255
Spesifikasi
| Diaphragm Material | Heat and water resistant synthetic rubber |
|---|---|
| Dimension L (mm) | 115 |
| Material (Main Unit) | CAC |
| Material (Valve Box) | CAC |
| Maximum Temperature (°C) | 60 |
| Nominal Diameter (B) | 3/4 |
| Nominal Diameter A | 20 |
| Operating Temperature Range (°C) | 60 or less |
| Primary Pressure (Kpa) | 100 to 750 |
| Primary Side Suitable Pressure (MPa) | 0.1 to 0.75 |
| Secondary Pressure Adjustment Range (MPa) | 0.8 |
| Suitable fluid | Cold And Hot Water |
| Trusco Part No. | 802-1262 |
| Type | Direct Acting |
| Type of Connection | Screw-in type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
JIS certified product, for cold regions, 115mm face-to-face distance. No tools are required for removal, making maintenance and inspection easy. The water drain plug is push-type and automatically returns to its original position after the water is drained.
