Yoshitake Wafer Trap WT-1
#Grup produk P111939219
Sebelum PPN:
Rp7.499.900 - Rp8.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | JIS Rc |
|---|---|

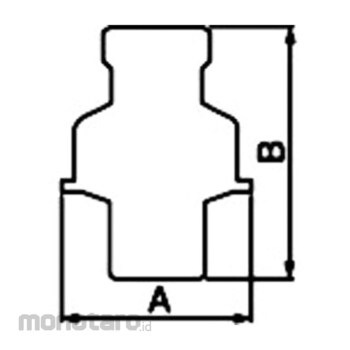

| Dimension A (mm) | 57 |
| Material (Main Unit) | Stainless Steel |
| Maximum Operating Pressure (MPa) | 2.8 |
| Maximum Operating Temperature (°C) | 343 |
| Operating Temperature Range (°C) | 343 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It is compact and lightweight, and the mounting posture can be horizontal or vertical. There is no steam loss due to the water sealing effect, making it ideal as an energy-saving trap. Since WT-1 and WMT-1 are all made of stainless steel (wafer is made of Hastelloy), they have excellent corrosion resistance and long life. It can be used for the main pipe of superheated steam. You can choose between two types of capsules. (WT-1, WT-3)・ Normally, capsules operate at a temperature 11 ° C lower than the saturation temperature. -The optional "N" capsule operates at a temperature 6 ° C below the saturation temperature.
