Yoshitake Temperature Control Valve OB-30 (Main Body)
#Grup produk P111938593
Spesifikasi
| Connector | JIS Rc |
|---|---|

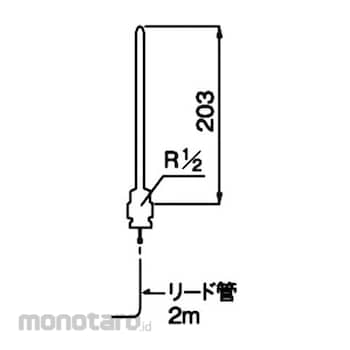

| Dimension H (mm) | 318.5 |
| Kinds | Temperature Control Valve |
| Length (m) | Lead tube: 2 |
| Material | Heat-sensitive tube: C1220 (copper tube NiCr plating) |
| Material (Main Unit) | CAC |
| Material (Valve Member) | PTFE (fluorine resin) |
| Maximum Pressure (MPa) | 1.7 (1.0 for steam) |
| Maximum Temperature (°C) | 185 |
| Suitable fluid | Steam, hot water |
| format | External pressure type bellows type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
High-performance temperature control valve with a compact body. Delicate adjustment is possible even with a small flow rate and small capacity. It has a large temperature control range and can be used for a wide range of purposes.
