Yoshitake Steam Trap TF-1
#Grup produk P111937390
Spesifikasi
| Applicable Pressure Range (MPa) | 0.01 to 0.3 |
|---|---|
| Connector | JIS 10KRF flange |

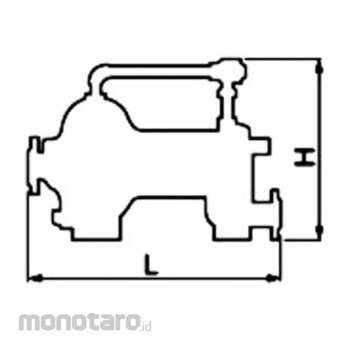

| Dimension H (mm) | 530 |
| Dimension L (mm) | 680 |
| Kinds | Steam Trap |
| Material (Float) | C2720 (brass) |
| Material (Main Unit) | FCD450 |
| Material (Valve / Valve Seat) | CAC |
| Maximum Operating Temperature (°C) | 150 |
| Operating Temperature Range (°C) | 150 |
| Suitable fluid | Steam drain |
| format | Float type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Widely used in heat exchangers, drying equipment, etc. that generate a large amount of drainage. Built-in air vent valve quickly exhausts the air in the piping at the initial stage of ventilation, greatly shortening warm-up. Large discharge capacity.
