Yoshitake Steam Trap / Trap STAR TSF-11F FCD450 Flange End Connection
#Grup produk P111936753
Sebelum PPN:
Rp19.999.900 - Rp24.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi

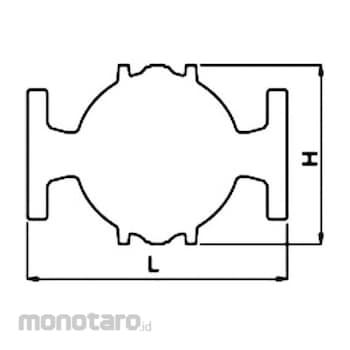

| Dimension H (mm) | 186 |
|---|---|
| Kinds | Steam Trap |
| Material (Float) | SUS |
| Material (Main Unit) | FCD450 |
| Material (Valve / Valve Seat) | SUS |
| Maximum Operating Temperature (°C) | 220 |
| Operating Temperature Range (°C) | 220 |
| Suitable fluid | Steam drain |
| format | Float type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The main parts such as floats and air vents and the cock are integrated. By rotating the cock, 360 ° omnidirectional piping is possible. All main parts are made of stainless steel to improve corrosion resistance and durability. Uses a bellows type air vent for high pressure. Built-in strainer type. A large trap with a maximum discharge of 3,400 kg / h.
