Yoshitake Steam Trap / Trap STAR TSF-10 FCD450 Screw End Connection
#Grup produk P111936692
Sebelum PPN:
Rp6.699.900 - Rp6.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | JIS Rc |
|---|---|

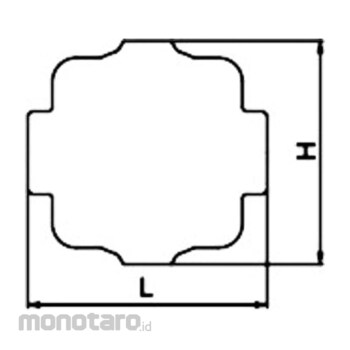

| Dimension H (mm) | 113 |
| Kinds | Steam Trap |
| Material (Float) | SUS |
| Material (Main Unit) | FCD450 |
| Material (Valve / Valve Seat) | SUS |
| Maximum Operating Pressure (MPa) | 2.1 |
| Maximum Operating Temperature (°C) | 220 |
| Operating Temperature Range (°C) | 220 or less |
| Suitable fluid | Steam drain |
| Type of Connection | JIS Rc |
| format | Float type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The main parts such as floats and air vents and the cock are integrated. By rotating the cock, 360 ° omnidirectional piping is possible. All main parts are made of stainless steel to improve corrosion resistance and durability. Uses a high-pressure bellows type air vent. Built-in strainer type. A large trap with a maximum discharge of 1,800 kg / h.
