The unique internal structure (free floating lever system, spherical valve, etc.) provides amazing durability! Excellent reliability in terms of leakage and operation is ensured. The intermittent operation eliminates the air insulation wall on the inside of the heat exchanger, greatly increasing thermal efficiency.
* Only one of the built-in check valve and thermic vent can be installed.

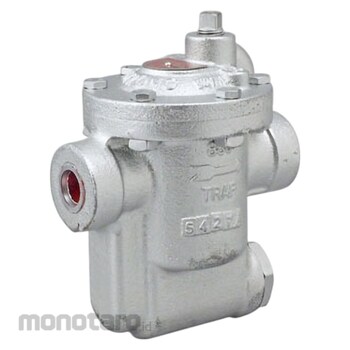

Yoshitake Steam Trap (Screw-in Type) TB-880 Series
#Grup produk P111936656
Sebelum PPN:
Rp2.899.900 - Rp3.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Color | Silver |
|---|---|
| Connector | JIS Rc |
| Dimension A (mm) | 95.2 |
| Dimension H (mm) | 154 |
| Dimension H1 (mm) | 87 |
| Dimension L (mm) | 127 |
| Flow Direction | Side to side |
| Material (Bucket) | Stainless Steel |
| Material (Main Unit) | Gray cast iron |
| Material (Strainer) | (Built-in) Stainless steel |
| Material (Valve / Valve Seat) | Hardened chrome steel |
| Maximum Operating Pressure (MPa) | 1.05 |
| Maximum Pressure (MPa) | 1.05 |
| Maximum Temperature (°C) | 220 |
| Operating Temperature Range (°C) | 220 or less |
| Suitable fluid | Steam drain |
| Type | Bucket type |
| Type of Connection | Screwed |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Only one of the built-in check valve and thermic vent can be installed.Ulasan Produk
