Versatile type that supports fluids such as steam, air, water, and oil. We pursued the highest performance by subdividing pressure categories and realizing precision finishing with advanced technology. Advanced technology, high-grade materials, and a simple mechanism have realized amazing durability in addition to ease of maintenance and inspection. The sealed structure prevents fluid from leaking outside.
* For liquids such as water and oil, the maximum temperature is 120 ° C.

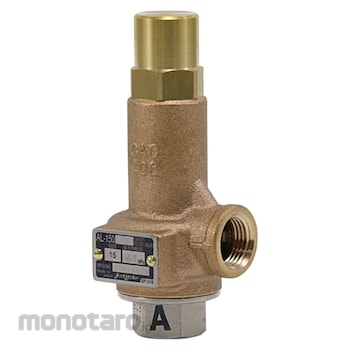

Yoshitake Safety Relief Valve AL Series
#Grup produk P111935091
Sebelum PPN:
Rp2.699.900 - Rp9.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Compatible Fluid | Steam, air, cold / hot water, oil, other non-hazardous fluids |
|---|---|
| Connector | JIS Rc |
| Fluid Used | Steam/water/oil/air, non-hazardous fluids |
| Material (Adjustment Spring) | Stainless Steel |
| Material (Main Unit) | CAC |
| Material (Spring Box) | Bronze |
| Material (Valve / Valve Seat) | Stainless steel (SCS14A) |
| Operating Pressure Range (MPa) | 0.05 to 1.0 |
| Operating Temperature Range (°C) | 5 to 220 |
| Type | Lifting type |
| Type of Connection | Screw-in type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* For liquids such as water and oil, the maximum temperature is 120 ° C.Ulasan Produk
