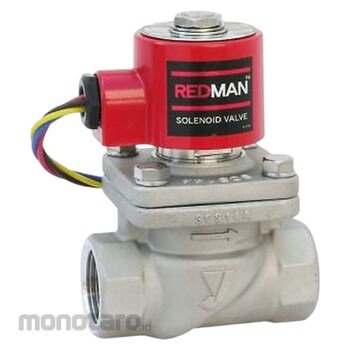

Yoshitake Redman SCS14A Solenoid Valve [Screw-in, energized, AC100/200V, RoHS] DP-100 Series

It can be used for fluids such as steam, hot and cold water, air, nitrogen gas, carbon dioxide gas (dry state), argon gas, oil (20cSt or less), etc. It has survived over 600,000 opening and closing operations, achieving three times the durability of conventional products. By adopting "ANTI STICKING MECHANISM" in the valve disc sliding part, we have achieved more than three times the scale resistance compared to conventional products. The body, including the main internal parts, is made of stainless steel, improving corrosion resistance. The use of cartridge-type parts has significantly improved maintainability. Airtightness has been improved by using a PTFE (Teflon) gasket. It can be used for a wide range of pressure from 0 to 1.0 MPa. (0.03 to 1.0 MPa when the coil is horizontal) The mounting orientation can be either horizontal or vertical (but within 90° with the coil facing upwards).
