Yoshitake Pressure Reducing Valve GD-91R-80 Bronze Screw End Connection
#Grup produk P111934171
Spesifikasi
| Connector | JIS + G3 / 4 (male) |
|---|---|
| Diaphragm Material | Heat and water resistant synthetic rubber |

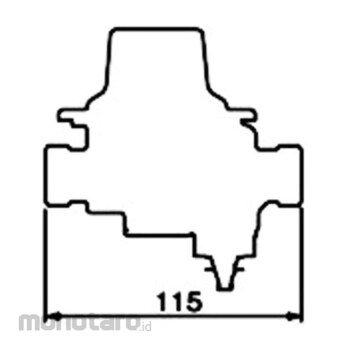

| Dimension L (mm) | 115 |
| Material (Valve Box) | CAC |
| Maximum Temperature (°C) | 60 |
| Mesh (strainer) | 60 mesh |
| Nominal Diameter (B) | 3/4 |
| Nominal Diameter A | 20 |
| Operating Temperature Range (°C) | 60 |
| Primary Pressure (Kpa) | 100 to 750 |
| Set Pressure (kPa) | 80(±6) |
| Suitable fluid | Cold And Hot Water |
| Type | Water pressure reducing valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Water pressure reducing valve for cold regions, backflow prevention function, negative pressure operation function, pressure balance function, It has a built-in automatic return type drain plug and strainer, and is mainly used for electric water heaters. Parallel screws are used for connection, and piping can be done easily with bag nuts. The mounting direction can be horizontal or vertical.
