Yoshitake Pressure Reducing Valve GD-46PP Bronze Screw End Connection
#Grup produk P111934056
Spesifikasi
| Connector | JIS + R (Union fitting) |
|---|---|
| Diaphragm Material | Synthetic rubber |

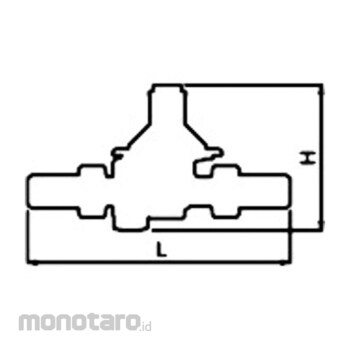

| Dimension H (mm) | 122.5 |
| Dimension L (mm) | 218 |
| Flow Rate (L/minute) | (Minimum adjustable) 0.5 |
| Material (Main Unit) | CAC (Leadless processing) |
| Material (Valve Member) | Synthetic rubber |
| Material (Valve Seat) | CAC (Leadless processing) |
| Maximum Decompression Ratio | 10：1 |
| Maximum Temperature (°C) | 90 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.02 |
| Nominal Diameter (B) | 3/4 |
| Nominal Diameter A | 20 |
| Operating Temperature Range (°C) | 90 |
| Primary Pressure (MPa) | 1 or less |
| Primary Side Suitable Pressure (MPa) | 1 or less |
| Suitable fluid | Tap water, hot water |
| Type | Water-reducing pressure reducing valve for individual houses with bypass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Water supply law standard compliant product. Compliant with the Housing and Urban Development Corporation "Quality Judgment Criteria for Equipment". Lead elution performance is 0.01 mg or less.
