Yoshitake Pressure Reducing Valve GD-43-10 SCS14A Flange End Connection
#Grup produk P111933899
Sebelum PPN:
Rp18.999.900 - Rp19.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | JIS 10KFF flange |
|---|---|
| Diaphragm Material | FKM (Viton) (wetted part PTFE affixed) |

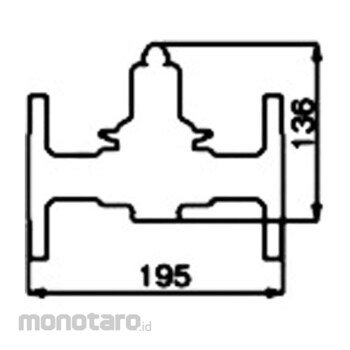

| Dimension H (mm) | 136 |
| Dimension L (mm) | 195 |
| Material (Main Unit) | SCS |
| Material (Valve / Valve Seat) | FKM (Viton) / SCS |
| Material (valve stem) | SUS |
| Maximum Decompression Ratio | 10：1 |
| Maximum Temperature (°C) | 90 |
| Minimum Differential Pressure (MPa) | 0.05 |
| Operating Temperature Range (°C) | 90 |
| Primary Pressure (MPa) | 1 or less |
| Primary Side Suitable Pressure (MPa) | 1 or less |
| Secondary Pressure (MPa) | B：0.1 to 0.25 |
| Secondary Pressure Adjustment Range (MPa) | B：0.1 to 0.25 |
| Suitable fluid | Cold And Hot Water |
| Type | Direct Acting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Lightweight and compact. Stainless steel material is used for the wetted parts to improve corrosion resistance. The sealed structure prevents external leakage even if the diaphragm is damaged. The piping can be installed horizontally or vertically.
