Yoshitake Pressure Reducing Valve GD-41 SCS14A Threaded NPT End Connection
#Grup produk P111933817
Spesifikasi
| Connector | JIS Rc |
|---|---|
| Diaphragm Material | Heat resistant synthetic rubber & PTFE (wetted part PTFE sticking) |

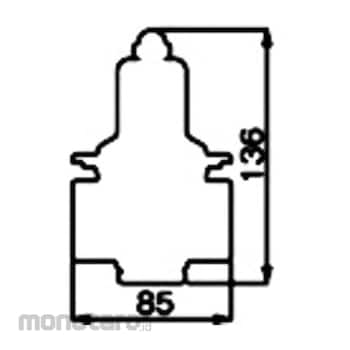

| Dimension H (mm) | 136 |
| Dimension L (mm) | 85 |
| Material (Main Unit) | SCS14A |
| Material (Valve / Valve Seat) | Special FKM / SCS |
| Material (valve stem) | SUS |
| Maximum Decompression Ratio | 10：1 |
| Maximum Temperature (°C) | 90 |
| Minimum Differential Pressure (MPa) | 0.05 |
| Operating Temperature Range (°C) | 90 |
| Primary Pressure (MPa) | 0.07 ~ 2.0 or less |
| Primary Side Suitable Pressure (MPa) | 0.07 ~ 2.0 or less |
| Suitable fluid | Cold And Hot Water |
| Type | Direct Acting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Space saving, resource saving. Improved corrosion resistance and durability. Due to the sealed structure, there is no external leakage even if the diaphragm is damaged.
