Yoshitake Pressure Reducing Valve GD-25GJ Bronze Screw End Connection
#Grup produk P111933516
Spesifikasi
| Connector | JIS + R (Union fitting) |
|---|---|
| Diaphragm Material | Synthetic rubber |

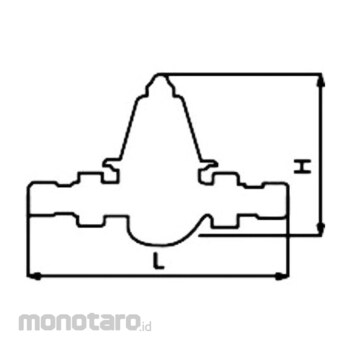

| Dimension H (mm) | 186 |
| Dimension L (mm) | 252 |
| Flow Rate (L/minute) | (Minimum adjustable) 0.5 |
| Material (Main Unit) | CAC (Leadless processing) |
| Material (Valve Member) | Synthetic rubber |
| Material (Valve Seat) | CAC (Leadless processing) |
| Maximum Decompression Ratio | 10：1 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.02 |
| Nominal Diameter (B) | 1 |
| Nominal Diameter A | 25 |
| Operating Temperature Range (°C) | 5 to 90 |
| Primary Pressure (MPa) | 1 or less |
| Primary Side Suitable Pressure (MPa) | 1 or less |
| Suitable fluid | Tap water |
| Thermal Insulation | Flame retardant material |
| Type | Water pressure reducing valve for individual housing |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Water supply law standard compliant product. Maintains extremely stable secondary pressure against fluctuations in water supply side pressure. Eliminates the noise of the pressure reducing valve itself, making it safe to supply water at midnight. Easy to handle piping due to its built-in strainer and small size and light weight.
