Yoshitake Pressure Reducing Valve GD-15C Bronze Screw End Connection
#Grup produk P111933394
Spesifikasi
| Connector | JIS Rc |
|---|---|
| Diaphragm Material | NBR |

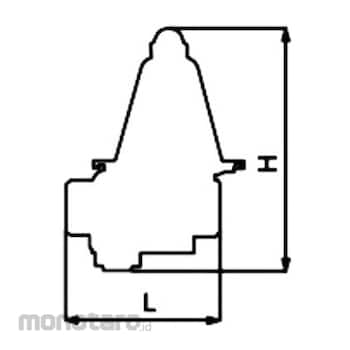

| Dimension H (mm) | 146 |
| Dimension L (mm) | 90 |
| Flow Rate (L/minute) | (Minimum adjustable) 0.5 |
| Material (Main Unit) | CAC (Leadless processing) |
| Material (Valve Member) | NBR |
| Material (Valve Seat) | CAC (Leadless processing) |
| Maximum Decompression Ratio | 10：1 |
| Minimum Pressure Differential Before and After Valve (MPa) | 0.03 |
| Operating Temperature Range (°C) | 5 to 60 |
| Primary Pressure (MPa) | 0.1 to 1.0 |
| Primary Side Suitable Pressure (MPa) | 0.1 to 1.0 |
| Secondary Pressure (MPa) | 0.05 to 0.25 |
| Secondary Pressure Adjustment Range (MPa) | 0.05 to 0.25 |
| Suitable fluid | Tap water |
| Thermal Insulation | Flame retardant material |
| Type | Water pressure reducing valve for individual housing |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Water supply law standard compliant product. Maintains extremely stable secondary pressure against fluctuations in water supply side pressure. Eliminates the noise of the pressure reducing valve itself, making it safe to supply water at midnight. Easy to handle piping due to its built-in strainer and small size and light weight. Built-in reverse stop mechanism prevents backflow to the water supply main. The piping can be installed horizontally or vertically.
