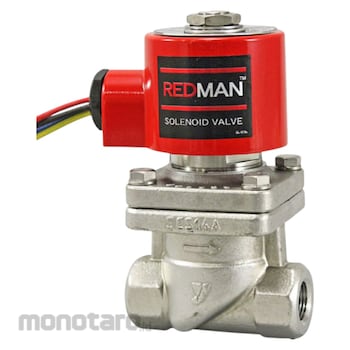

Yoshitake Piston Type Solenoid Valve (Screw Type) DP-100 Series
#Grup produk P111933039
Spesifikasi
| Connector | JIS Rc |
|---|---|
| Dimension H (mm) | 127 |
| Dimension H1 (mm) | 14.5 |
| Dimension L (mm) | 70 |
| Fluid | Steam, cold / hot water, air, nitrogen gas, carbon dioxide gas (dry state), argon gas, A heavy oil, B heavy oil, kerosene, light oil (20 cSt or less) |
| Handle Type | Without handle |
| Kinds | Solenoid Valve |
| Material (Main Unit) | Stainless Steel |
| Material (Valve Member) | Stainless Steel |
| Maximum Operating Pressure (MPa) | 1 |
| Minimum Operating Pressure Differential (MPa) | 0 (Differential pressure of 0.03 or more is required for horizontal coils) |
| Nominal Diameter (B) | 3/8 |
| Nominal Diameter A | 10 |
| Operating Temperature Range (°C) | 5 to 180 (no freezing) |
| Rated Voltage (V) | 100/200 AC/connection method selection type (50/60 Hz common) |
| Shape | Straight |
| Suitable fluid | Steam, hot and cold water, air, nitrogen gas, carbon dioxide gas (dry state), argon gas, oil (20cSt or less) |
| Type of Connection | Screw-in type |
| Voltage (V) | 100/200 AC/connection method selection type (50/60 Hz common) |
| format | Pilot Type Piston Type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Although it is a solenoid valve, it can be opened and closed more than 600,000 times. By using stainless steel for the body, including the main internal parts, it achieves even better corrosion resistance than before, and can be used with clean fluids. The internal parts of a complicated solenoid valve are integrated. Even in the event of maintenance, it is now possible to easily replace the cartridge while the pipes are connected.
