Absorbs expansion and contraction in the axial direction of the pipeline due to temperature changes. No packing is used, making maintenance and management easy. The liquid-contacting parts are made of stainless steel, providing excellent corrosion resistance and durability.
For high pressure
Yoshitake Expansion Tube Fitting EB-11 series
#Grup produk P111932313
Sebelum PPN:
Rp40.999.900 - Rp48.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | JIS 20KRF flange |
|---|---|

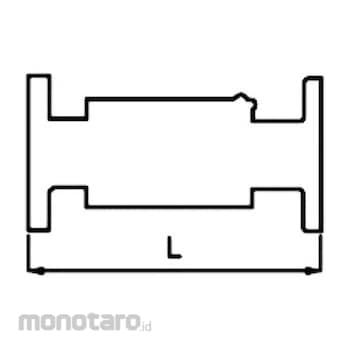

| Dimension L (mm) | 440 |
| Expansion / Contraction (mm) | Stretch 10 Shrink 25 |
| Material | Outer cylinder: SPHC or SS, bellows, inner cylinder: SUS316L |
| Material (Bellows) | SUS316L |
| Material (Outer Pipe) | Carbon steel |
| Maximum Operating Pressure (MPa) | 2 |
| Maximum Pressure (MPa) | 2 |
| Maximum Temperature (°C) | 220 |
| Operating Temperature Range (°C) | 220 |
| Overall Length (mm) | 440 |
| Range of Length Adjustment | Maximum extension / contraction length: Elongation 10, contraction 25 |
| Suitable fluid | Steam, air, cold / hot water, oil, other non-hazardous fluids |
| Type | Telescopic fittings |
| format | Bellows type (single) |
