Yoshitake Expansion Joint EB-2J
#Grup produk P111932298
Sebelum PPN:
Rp37.999.900 - Rp85.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connector | JIS 10K flange |
|---|---|
| Material | Body: SPHC or SS (outer cylinder), Bellows and inner cylinder: SUS316L |
| Maximum Operating Pressure (MPa) | 1 |
| Maximum Pressure (MPa) | 1 |
| Maximum Temperature (°C) | 220 |
| Operating Temperature Range (°C) | 220 or less |

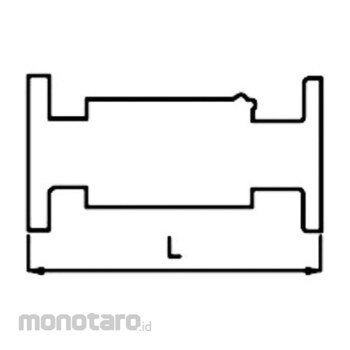

| Range of Length Adjustment | Maximum extension length: extension 20, contraction 50 |
| Suitable fluid | Steam, air, cold / hot water, oil, other non-hazardous fluid |
| Type | Telescopic fittings |
| format | Bellows type (compound A) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Absorbs expansion and contraction in the axial direction of the pipeline due to temperature changes. Compliant with Japanese Industrial Standard JIS B 2352. Excellent corrosion resistance and durability due to stainless steel liquid contact parts. Comes with an anchor base, so installation costs are low.
