High pressure disc type trap (maximum operating pressure 4.2 MPa). The disc and valve seat are made of stainless steel with special heat treatment for excellent durability. By adopting bimetal, air obstacles are eliminated and cold water and air are quickly discharged at startup, shortening the start-up time of steam equipment. It is compact and lightweight, and the piping can be installed in any direction (horizontal or vertical). Built-in strainer type.
For steam transport pipes and piping trace lines.
Yoshitake Disc Type Steam Trap
#Grup produk P111932058
Spesifikasi
| Applicable Pressure Range (MPa) | 0.035 to 4.2 |
|---|---|
| Connector | JIS Rc |

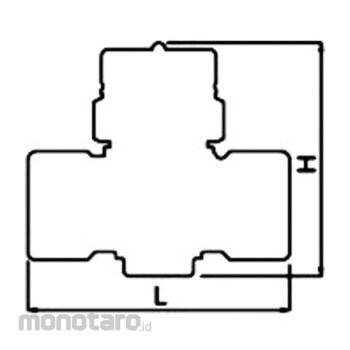

| Dimension A (mm) | 32 |
| Dimension H (mm) | 76 |
| Dimension H1 (mm) | 23 |
| Dimension L (mm) | 78 |
| Kinds | Steam Trap |
| Material (Main Unit) | Stainless steel (SCS2A) |
| Maximum Allowable Back Pressure (MPa) | 50% of primary pressure |
| Maximum Operating Pressure (MPa) | 4.2 |
| Maximum Operating Temperature (°C) | 425 |
| Maximum Temperature (°C) | 425 |
| Nominal Diameter (B) | 3/8 |
| Nominal Diameter A | 10 |
| Operating Pressure Range (MPa) | 0.035 to 4.2 |
| Operating Temperature Range (°C) | Under 425 |
| Suitable fluid | Steam drain |
| Type | Disc type |
| Type of Connection | JIS Rc |
