Yoshitake Air Bleeding Valve TA-5
#Grup produk P111931095
Spesifikasi
| Applicable Pressure Range (MPa) | 0.01 to 1.0 |
|---|---|
| Connector | JIS Rc |

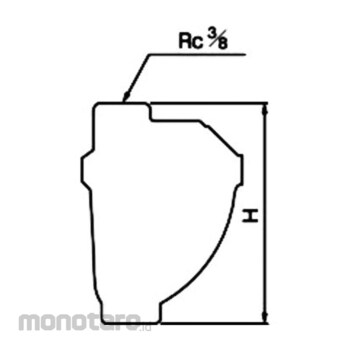

| Dimension C (mm) | 114 |
| Dimension H (mm) | 153 |
| Material | Floating valve body: brass (with NBR disc) |
| Material (Float) | SUS |
| Material (Main Unit) | Bronze |
| Material (Valve Member) | Brass |
| Material (bonnet) | Bronze |
| Maximum Temperature (°C) | 90 |
| Operating Pressure Range (MPa) | Quick exhaust valve: 0.01 or less |
| Operating Temperature Range (°C) | 90 |
| Suitable fluid | Cold / hot water, oil (specific gravity 0.8 or more) |
| Type | Air vent valve |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Since it is equipped with a quick exhaust mechanism, the air inside the pipe is rapidly discharged to the outside during the initial water flow, facilitating water flow. Since a synthetic rubber disc is used for the valve seat, it has excellent sealing properties.
