Vibronic
Point level detection

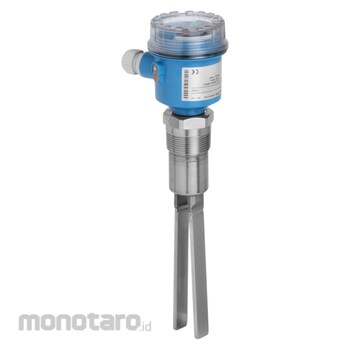

Soliphant FTM50
FTM50-2GG2A2A32AA
Robust point level switch for fine-grained bulk solids also for hazardous areas
Endress Hauser Soliphant FTM50 Series Point Level Switch
#Grup produk P111929151
Sebelum PPN:
Rp35.999.900 - Rp44.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -50 to 70 |
|---|---|
| Ambient Temperature (°F) | -60 to 160 |
| Certificates/Approval | ATEX, FM, CSA, CSA C/US, IEC Ex, JPN, INMETRO, NEPSI, EAC |
| Characteristic/Application | Compact point level switch for fine grained solids and powder Grain size <= 10 mm (<= 0.39 in) Fork sensor No calibration required Not affected by build-up or external vibration Robust Switch value visible from outside |
| Communication | DC PNP 2-wire AC Thyristor DPDT relay 8/16mA NAMUR PFM |
| Main Wetted Parts | selectable: 316L 3,2um 316L 0,8um 316L PTFE coated (to avoid build-up) 316L ETFE coated (to avoid corrosion) |
| Measuring Principle | Vibration Solids |
| Measuring/Application Task | Point Level / Solids |
| Minimum Density of Medium (g/L) | Standard fork: 10, Short fork: 50 |
| Process Connection | Thread R 1 1/2inch 1 1/4inch NPT 1 1/2inch NPT EN Flange DN50 to DN100 ASME Flange 2inch to 4inch JIS Flange 50A to 100A |
| Process Connection Hygienic | Tri-Clamp ISO2852 |
| Process Pressure/Maximum Overpressure Limit (bar) | Vacuum ... 25 |
| Process Pressure/Maximum Overpressure Limit (psi) | Vacuum ... 360 |
| Process Temperature (°C) | -50 to +280 |
| Process Temperature Range (°F) | -60 to +540 |
| Safety Approval | SIL |
| Sensor Length (inch) | Standard: 8; Short: 5.7 |
| Sensor Length (mm) | Standard: 200; Short: 145 |
| Specialities | Build-up and corrosion detection Remote version 3 temperature versions available SIL 2 |
| Supply/Communication (V) | 10-55 DC PNP 3-wire 19-253 AC 2-wire 19 to 253 AC / 19 to 55 DC 2 relay contact 8/16mA NAMUR PFM |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SIL2 in accordance with IEC 61508No mechanically moved parts, free of maintenance
Measurement not affected by build-up or external vibration
Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
Build-up and abrasion display selectable, density setting and switching delay selectable
Choice of coated or polished sensor
Build-up and corrosion detection
Use
Field of applicationSoliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.
Point level switch for fine grained solids and powder.
Process connections: Threads, flanges and hygienic connection (Tri-Clamp)
Temperature: -50 to +280°C (-60 to +540°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor length: 145mm, 200mm
Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)
International explosion protection certificates
