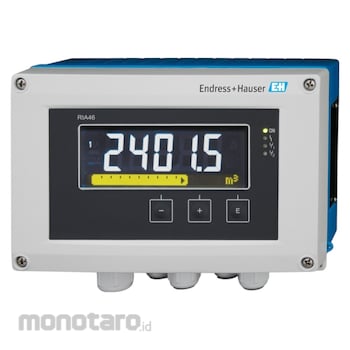

RIA46 process indicator with control unit
RIA46-B1B2A
4-wire process indicator with control unit as a field device with up to two universal sensor inputs and optional SIL approval
Endress Hauser RIA46 LCD Process Meter for Current
#Grup produk P111928994
Sebelum PPN:
Rp24.999.900 - Rp33.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Certificates | ATEX II(1)GD [Ex ia] IIC CSA General Purpose CSA AIS, NI/I/2/ABCDEFG/T4 FM AIS, NI/I/2/ABCDEFG/T4 TIIS [Ex ia] IIC NEPSI [Ex ia] IIC UK II(1)G [Ex ia Ga] IIC, II(1)D [Ex ia Da] IIIC |
|---|---|
| Display | Multicolor backlight LCD White/black/yellow Bargraph Unit TAG Alarm warning in plain text |
| Function | Display Loop Power Supply Transmitter Functionality Barrier Signal Isolation Calculation Limit Alarm |
| Input | 2 x universal (U, I, R, RTD, TC) |
| Measuring Principle | Indicators with control unit; Field meter with control unit |
| Measuring/Application Task | Process indicator & control units |
| Output | 2 x analogue output (I, U) 1 x loop power supply |
| Panel Mounting | Field |
| Power Supply (V) | 20 to 250 AC/DC |
| SIL Rating | 2 |
| Software Function | Linearization Minimum value per channel Maximum value per channel Calculation Band value monitoring |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
5-digit 7-segment LC display, backlit1 or 2 universal inputs
2 relays (optional)
Min./max. value saved
1 or 2 calculated values and linearization table
Digital status output (Open Collector)
SIL 2 approval (optional)
Use
Field of applicationAnalog measured values are indicated, evaluated and calculated by the field indicator. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.
The RIA46 field meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.
Process recording and supervision
Process control
Signal adjustment and signal conversion
