RIA45 process indicator with control
RIA45-A1D1
4-wire process indicator with control unit as a front panel-mounted device with up to two universal sensor inputs and optional SIL approval

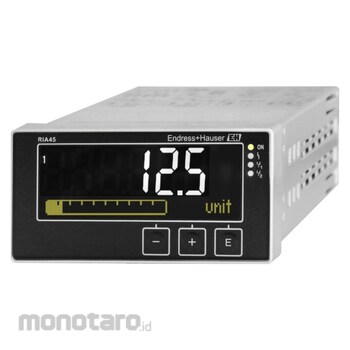

Endress Hauser RIA45 LCD Process Indicator
#Grup produk P111928897
Sebelum PPN:
Rp17.999.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Certificates | ATEX II(1)GD [Ex ia] IIC CSA General Purpose CSA AIS, NI/I/2/ABCDEFG/T4 FM AIS, NI/I/2/ABCDEFG/T4 TIIS [Ex ia] IIC NEPSI [Ex ia] IIC UK II(1)G [Ex ia Ga] IIC, II(1)D [Ex ia Da] IIIC marine certificate |
|---|---|
| Display | Multicolor backlight LCD White/black/yellow Bargraph Unit TAG Alarm warning in plain text |
| Function | Display Loop power supply Transmitter functionality Barrier Signal isolation Calculation Limit alarm |
| Input | 2 x universal (U, I, R, RTD, TC) |
| Measuring Principle | Indicators with control unit; Process meter with control unit |
| Measuring/Application Task | Process indicator & control units |
| Output | 1 x loop power supply |
| Power Supply (V) | 20 to 250 AC/DC |
| SIL Rating | 2 |
| Software Function | Linearization Minimum value per channel Maximum value per channel Calculation Band value monitoring |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
5-digit 7-segment LC display, backlit1 or 2 universal inputs
2 relays (optional)
Min./max. value saved
1 or 2 calculated values and linearization table
Digital status output (Open Collector)
SIL2 approval (optional); marine approval
Use
Field of applicationAnalog measured values are indicated, evaluated and calculated by the process meter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.
The RIA45 panel meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.
Plant and apparatus engineering and construction
Control rooms and cabinets
Laboratories
Process recording and supervision
Process control
Signal adjustment and conversion
