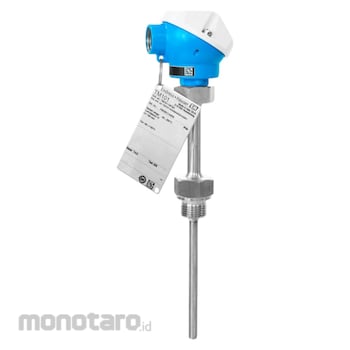

iTHERM ModuLine TM101
Industrial modular thermometer
TM101-AACCA1GA1A3A1
Fundamental metric RTD/TC direct contact thermometer for a wide range of industrial applications
Endress Hauser PT100 Temperature Probe
#Grup produk P111928693
Spesifikasi
| Accuracy | Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class standard acc. to ASTM E230 Class 2 acc. to IEC 60584-2 |
|---|---|
| Characteristic/Application | Basic technologie metric style universal range of application direct process contact |
| Insert/Probe | Basis Sensortechnologie |
| Integration Head Transmitter | yes (4 … 20 mA; HART) |
| Maximum Immersion Length on Request (mm) | up to 1.000,0 (39inch) |
| Maximum Process Pressure | (static) depending on the configuration |
| Measuring Principle | Resistance Temperature Detector |
| Measuring/Application Task | Thermometer |
| Operating Temperature Range (°C) | Basic PT100 TF: -50 to 200; Typ K: max. 1.100 |
| Operating Temperature Range (°F) | Basic PT100 TF: -58 to 392; Typ K: max. 2.012 |
| Outer Diameter Protection Tube/Insert (mm) | Insert: 6.0 |
| Process Connection | Thread: G1/2inch, G1/4inch, NPT1/2inch, M18x1.5, M20x1.5, Cap-nut: G1/2inch, G3/4inch, Compression fitting, also spring load: NPT1/2inch, G1/2inch |
| Protection Tube/Thermowell Material | Insert Material: 316L (1.4404) Alloy 600 (2.4816) |
| Response Time (s) | t90 around 17, depending on configuration |
| Thermowell/Protection Tube | without, direct process contact |
| Tip Shape | straight |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Excellent value for money and fast global deliveryUser-friendly product selection, smart design for easy maintenance
Wide range of process connections
Bluetooth® connectivity (optional)
Use
Field of applicationBasic thermometers offer reliable temperature measurement performance with basic sensor technology, a standard extension neck and a fixed, non-replaceable insert for use in non-hazardous areas. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.
Wide range of applications
Measuring range: -50 to +650 °C (-58 to +1202 °F)
Pressure range: up to 50 bar (725 psi)
Protection class: up to IP68
For use in non-hazardous areas
