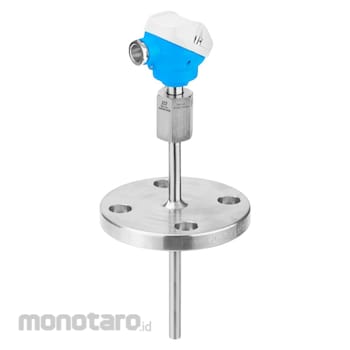

iTHERM ModuLine TM121
Industrial modular thermometer
TM121-AACCB2B2GC3A1A1
Fundamental metric RTD/TC thermometer with welded thermowell for a wide range of industrial applications
Endress Hauser PT100 RTD Sensor
#Grup produk P111928675
Spesifikasi
| Accuracy | Class A acc. to IEC 60751 Class B acc. to IEC 60751 Class standard acc. to ASTM E230 Class 2 acc. to IEC 60584-2 |
|---|---|
| Characteristic/Application | metric style modular temperature assembly universal range of application with neck incl. thermowell / protection tube (metal) |
| Insert/Probe | Basis Sensortechnologie |
| Integration Head Transmitter | yes (4 … 20 mA; HART) |
| Maximum Immersion Length on Request (mm) | up to 1.000,0 (39inch) |
| Maximum Process Pressure | (static) depending on the configuration |
| Measuring Principle | Resistance Temperature Detector |
| Measuring/Application Task | Thermometer |
| Operating Temperature Range (°C) | Basic PT100 TF: -50 to 200; Typ K: max. 1.100 |
| Operating Temperature Range (°F) | Basic PT100 TF: -58 to 392; Typ K: max. 2.012 |
| Outer Diameter Protection Tube/Insert (mm) | Thermowell: 9x1.25; 11x2 |
| Process Connection | Thread: G1/2inch, NPT1/2inch, M20x1.5, M27x2, M33x2, Compression fitting: NPT1/2inch, G1/2inch, G1inch, Flansche: DN25 DN40 B1, ASME 1inch 150 RF, ASME 1inch 300 RF, ASME 1 1/2inch 150 RF, ASME 2inch 150 RF, ASME 2inch 300 RF |
| Protection Tube/Thermowell Material | 316L (1.4404) |
| Response Time (s) | t90 around 100, depending on configuration |
| Thermowell/Protection Tube | welded protection tube |
| Tip Shape | straight |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Economical, reliable measurementUser-friendly from product selection to maintenance
Wide range of process connections
Easy and safe device setup and service using Bluetooth® communication
Use
Field of applicationRTD or TC assembly characterized by basic sensor technology, application in non-hazardous areas, standard extension neck, low-cost unit. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.
Universal range of application
Application in non-hazardous areas
Measuring range: –50 to +650 °C (–58 to +1202 °F)
Pressure range up to 50 bar (725 psi)
Degree of protection: up to IP 68
