Ultrasonic measurement
Time-of-Flight

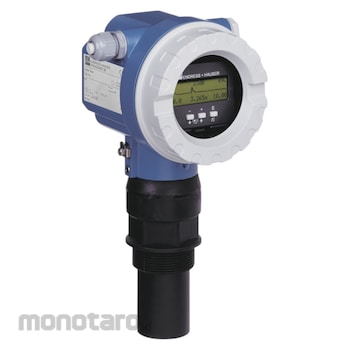

Prosonic FMU41
FMU41-1RB2A2
Cost effective device for sophisticated level measurement in liquids and bulk solids for up to 8m
Endress Hauser Prosonic M FMU41 Series Ultrasonic Level Measurement Ultrasonic Level Sensor
#Grup produk P111928611
Sebelum PPN:
Rp69.999.900 - Rp86.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -40 to 80 |
|---|---|
| Ambient Temperature (°F) | -40 to 176 |
| Certificates/Approval | ATEX, FM, CSA, IEC, INMETRO, NEPSI |
| Characteristic/Application | Compact ultrasonic transmitter |
| Communication | 4...20 mA HART |
| Main Wetted Parts | PVDF |
| Measuring Principle | Ultrasonic |
| Process Temperature (°C) | -40 to 80 |
| Process Temperature Range (°F) | -40 to 176 |
| Solid Application Limits | Take notice of range diagram |
| Supply/Communication | 2-wire HART |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Reliable non-contact measurementQuick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable
Envelope curves on the on-site display for simple diagnosis
Hermetically sealed and potted sensor
Chemically resistant sensor out of PVDF
Calibration without filling or discharging
Integrated temperature sensor for automatic correction of the temperature dependent sound velocity
Use
Field of applicationThe Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Two-wire or four wire instrument for continuous non-contact level and flow measurement.
Process connection: Thread
Temperature: -40 to +80°C (-40 to +176°F)
Pressure: +0.7 to +3bar (+10 to +44psi)
Maximum measuring distance: Liquids 8m (26ft), Solids 3.5m (11ft)
Blocking distance: Liquids and Solids 0.35m (1.15ft)
International explosion protection certificates
