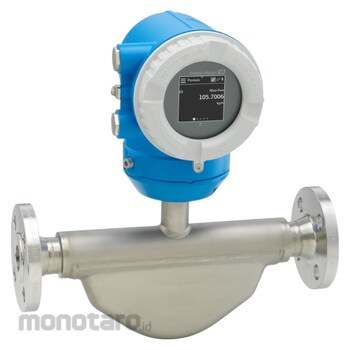

Proline Promass K 10
Coriolis flowmeter
8KBB15-AAEBJAASAD2SFA1
Flowmeter with minimized total cost of ownership with easy-to-use operation concept
Sensor Features
Cost-effective general-purpose device – alternative to mechanical flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space-saving installation – no in-/outlet run needs.
Compact dual-tube sensor. Medium temperature up to +150 (+302 °F). Process pressure up to 100 bar (1450 psi).
Transmitter Features
Optimum usability – display with touch screen (HART and Modbus RS485 communication only) or operation with mobile devices and SmartBlue app. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
System integration with HART, Modbus RS485, IO-Link. Flexible operation with app and optional display.
Endress Hauser Proline Promass K 10 Series Coriolis Flowmeter
#Grup produk P111928550
Sebelum PPN:
Rp289.999.900 - Rp399.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature Range (°C) | Standard: –20 to +60 |
|---|---|
| Ambient Temperature Range (°F) | Standard: –4 to +140 |
| Degree of Protection | Standard: IP66/67, Type 4X enclosure |
| Digital Communications | HART, MODBUS RS485, IO-Link |
| Display/Operation | 2.4inch LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible |
| Maximum Measuring Error (%) | Mass flow (liquid): ±0.5 (standard), ±0.15 (option) Mass flow (gas): ±0.75 |
| Maximum Process Pressure | PN 40, Class 300, 40K |
| Measured Variables | Mass flow, temperature, Density (option), volume flow, corrected volume flow |
| Measuring Principle | Coriolis |
| Measuring Range (kg/hour) | 0 to 180000 |
| Measuring Range (lb/minute) | 0 to 6615 |
| Measuring/Application Task | Liquids, Gas |
| Media Temperature Range (°F) | –40 to +302 |
| Medium Temperature Range (°C) | –40 to +150 |
| Nominal Diameter Range | DN 8 to 80 (⅜ to 3inch) |
| Output | 4-20mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20mA |
| Product Headline | Flowmeter with minimized total cost of ownership with easy-to-use operation concept. Measurement of liquids and gases in utility processes and basic applications. |
| Sensor Housing Material | Stainless steel 1.4301 (304) |
| Transmitter Housing Material | AlSi10Mg, coated |
| Wetted Materials | Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Easy integration into your plant infrastructure with IO-linkCost effective device for basic process and hygienic applications (3-A and cGMP, EHEDG)
Fewer process measuring points – multivariable measurement (flow, density, temperature)
Space-saving installation – no in-/outlet run needs
Optimum usability – display with touch screen (HART and MODBUS RS485 communication only) or operation with mobile devices and SmartBlue app
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology
Use
Field of applicationPromass K is the cost-efficient Coriolis solution for elementary mass flow measuring tasks. It provides dependable measurement in basic applications featuring air, gas, fuel and water. With its straightforward hard- and software design, Promass K 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
Measuring principle operates independently of physical fluid properties such as viscosity or density
Measurement of liquids and gases in utility processes and basic applications
Device properties
Compact dual-tube sensor
Medium temperature up to +150 °C (+302 °F)
Process pressure up to 100 bar (1450 psi)
System integration with HART, IO-Link, Modbus RS485
Flexible operation with app and optional display
