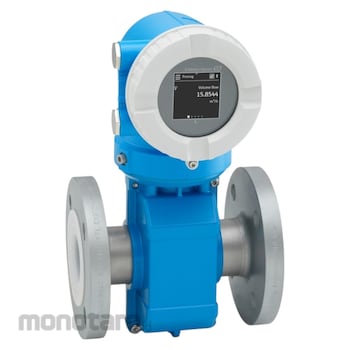

Proline Promag P 10
electromagnetic flowmeter
5PBB1H-AADDDBJM0A8D340AA1
Flowmeter for basic process applications with easy-to-use operation concept
Sensor Features
Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.
Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA.
Transmitter Features
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen. Simple, time-saving commissioning – guided parameterization in advance and in the field. Integrated verification – Heartbeat Technology.
System integration with HART, Modbus RS485. Flexible operation with app and optional display.
Endress Hauser Proline Promag P 10 Series Electromagnetic Flowmeter for Liquid
#Grup produk P111928514
Sebelum PPN:
Rp10.999.900 - Rp119.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature Range (°C) | Flange material carbon steel: –10 to +60 Flange material stainless steel: –40 to +60 |
|---|---|
| Ambient Temperature Range (°F) | Flange material carbon steel: +14 to +140 Flange material stainless steel: –40 to +140 |
| Degree of Protection | Standard: IP66/67, Type 4X enclosure |
| Digital Communications | HART, MODBUS RS485 |
| Display/Operation | 2.4inch LCD display with touch & auto rotate; Configuration and operation via SmartBlue App (Bluetooth) possible |
| Maximum Measurement Error | Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s) Volume flow (option): ±0.2 % o.r. ± 2 mm/s (0.08 in/s) |
| Maximum Process Pressure | PN 40, Class 300, 20K |
| Measured Variables | Volume flow, conductivity, mass flow |
| Measuring Principle | Electromagnetic |
| Measuring Range | 4dm³/min to 9600m³/h (1gal/min to 44 000gal/min) |
| Measuring/Application Task | Liquids |
| Media Temperature Range (°F) | Liner material PFA: –4 to +302 Liner material PTFE: –40 to +266 |
| Medium Temperature Range (°C) | Liner material PFA: –20 to +150 Liner material PTFE: –40 to +130 |
| Nominal Diameter Range | DN 15 to 600 (½ to 24inch) |
| Output | 4-20mA HART (active/passive), Pulse/frequency/switch output Modbus RS485, 4-20mA |
| Power Supply (V) | DC 24 AC 100 to 230 AC 100 to 230 / DC 24 (non-hazardous area) |
| Product Headline | Flowmeter for basic process applications with easy-to-use operation concept. Dedicated to chemical and process applications with corrosive liquids. |
| Sensor Housing Material | DN 15 to 300 (½ to 12\"\"): AlSi10Mg, coated DN 350 to 600 (14 to 24\"\"): Carbon steel with protective varnish |
| Transmitter Housing Material | AlSi10Mg, coated |
| Wetted Materials | Liner: PFA; PTFE Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Diverse applications – wide variety of wetted materialsEnergy-saving flow measurement – no pressure loss due to cross section constriction
Maintenance-free – no moving parts
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology
Use
Field of applicationPromag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With its straightforward hard- and software design, Promag P 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables safe processes.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
Dedicated to chemical and process applications with corrosive liquids.
Device properties
Nominal diameter: max. DN 600 (24")
All common Ex approvals
Liner made of PTFE or PFA
System integration with HART, Modbus RS485
Flexible operation with app and optional display
