Capacitance
Point level detection
Nivector FTI26
FTI26-AA7MWDJ
For all types of powdered and fine-grained solids especially in the food industry

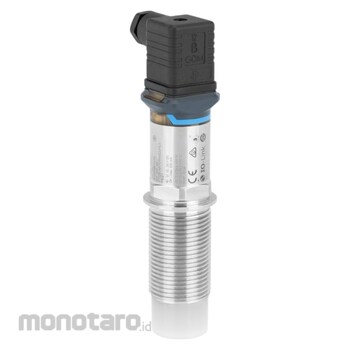

Endress Hauser Nivector FTI26 Series Capacitance Level Sensors
#Grup produk P111928198
Spesifikasi
| Ambient Temperature (°C) | -20 to +60 |
|---|---|
| Ambient Temperature (°F) | -4 to +140 |
| Characteristic/Application | Compact for all types of powdered solids / small-grain bulk solids |
| Communication | 12 V...30 VDC IO-Link |
| Design Approval | EN 10204-3.1 |
| Hygienic Approval | 3-A, EHEDG |
| Main Wetted Parts | PC, ECTFE \"Protector\" FDA listed material PBT-GF (according to 21 CFR 177.1660) |
| Measuring Principle | Capacitive Solid |
| Measuring/Application Task | Point Level / Solids |
| Process Connection | G1 |
| Process Temperature (°C) | -20 to +80 |
| Process Temperature Range (°F) | -4 to +176 |
| Safety Approval | ATEX, CSA C/US, IEC Ex, EAC Ex |
| Specialities | Active build-up compensation |
| Supply/Communication (V) | 12 to 30 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Easy installation even in tight conditions or where access is restricted thanks to the compact designFulfillment of all relevant hygienic requirements (3A, EHEDG, FDA, EG1935/2004); cleanable (IP69)
IO-Link reduces costs and complexity with an easy configuration of the devices via engineering tools
Best build-up performance in class and high sensitivity
No individual adjustment to each medium necessary
LED signalization for on-site function check
Use
Field of applicationThe Nivector FTI26 is a cost-efficient point level switch for solids in the food industry and powder applications in all industries. The capacitance device convinces with the best build-up performance in class and a high sensitivity. All industry compliant certificates are available. In addition, the FTI26 is industry 4.0 ready with IO-Link communication.
For MIN or MAX detection in silos with powdered and fine-grained solids, like plastic granules, grain, sugar, spices, coffee powder, laundry detergent
Process connections: G1" thread, Tri-Clamp 2" via adapter
Temperature: -20 to +80°C (-4 to +176°F)
Pressure: -1 to +6bar (-14.5 to +86psi)
International explosion protection certificates (Dust Ex), hygienic certificates
