Conductive
Point level detection

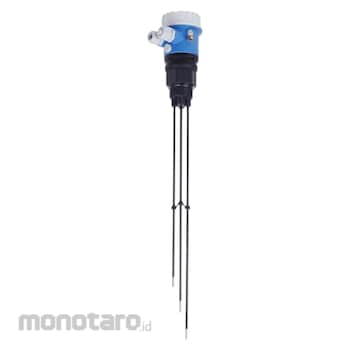

Liquipoint FTW31
FTW31-A1A3CA0A
Rod probe for multipoint detection for up to 5 switch points
Endress Hauser Liquipoint Series Level Switch Level Sensors
#Grup produk P111928116
Sebelum PPN:
Rp9.999.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Temperature (°C) | -40 to 70 |
|---|---|
| Ambient Temperature (°F) | -40 to 158 |
| Certificates/Approval | ATEX, EAC Ex |
| Characteristic/Application | Compact rod probe with multipoint detection, possible up to 5 switch points. Simple rod shortening. |
| Communication | DC PNP Relay |
| Components | Transmitter: FTW325 |
| Main Wetted Parts | 316L, PP, PPS |
| Maximum Tensile Strength (N) | 1000 |
| Measuring Principle | Conductive |
| Measuring/Application Task | Point Level / Liquids |
| Minimum Conductivity of Medium (µS/cm) | 10 |
| Process Connection | G 1 1/2 NPT1 1/2inch |
| Process Pressure/Maximum Overpressure Limit (bar) | Vacuum ... 10 |
| Process Pressure/Maximum Overpressure Limit (psi) | Vacuum ... 145 |
| Process Temperature (°C) | -40 to 100 |
| Process Temperature Range (°F) | -40 to 212 |
| Safety Approval | Leakage Detection |
| Sensor Length (inch) | 3.9 to 157 |
| Sensor Length (m) | 0.1 to 4 |
| Supply/Communication (V) | DC PNP 10,8 to . 45 Relay 20 to . 230 AC Relay 20 to . 55 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Cost-effective probe for conductive liquids with detection of up to five point levels with one probeNo calibration required
Standard setting for the most common conductive liquids
No moving parts in the tank - long service life, reliable operation with no wear or blockages
Use
Field of applicationThe Liquipoint FTW31 offers simple and safe point level detection in conductive liquids. It offers numerous measuring possibilities due to multipoint detection (up to 5 rods).
For use in conductive liquids (as of 10μS/cm). For overfill prevention, dry running protection,
two-point control of pumps or multiple point detection.
Process connections: Threads
Sensor length: 0.1 to 4m (3.9 to 157")
Temperature: -40 to 100°C (-40 to 212°F)
Pressure: -1 to 10bar (-14.5 to 145psi)
International explosion protection certificates, overfill prevention and leakage detection certificate WHG
