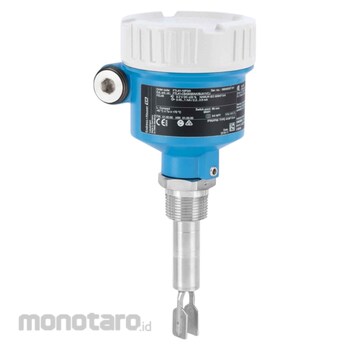

Liquiphant FTL41
FTL41-BBA8ABAAA3BJI1VCJ
The vibronic level switch in basic applications reduces complexities in your plant
Endress Hauser Liquiphant FTL51B Series Vibronic Level Switch Level Switch
#Grup produk P111928055
Spesifikasi
| Ambient Temperature (°C) | -40 to 70 |
|---|---|
| Ambient Temperature (°F) | -40 to 158 |
| Certificates/Approval | ATEX, IEC Ex, CSA, NEPSI |
| Characteristic/Application | Compact vibronic device with an optional pipe extension up to 2 m; Modular housing concept; Wide range of certificates |
| Communication | DC-PNP 3-wire Relays NAMUR |
| Design Approval | EN 10204-3.1 ASME B31.3 Process Piping CRN |
| Main Wetted Parts | 316L |
| Measuring Principle | Vibration Liquids |
| Measuring/Application Task | Point Level / Liquids |
| Minimum Density of Medium (g/cm³) | 0.5 (0.4 optional) |
| Process Connection | Threads: G3/4A, G1A, R3/4inch, R1, NPT3/4, NPT1, Flanges: DN25 to DN100, ASME 1inch to 4inch, JIS 25A to 50A |
| Process Connection Hygienic | Tri-Clamp ISO2852 |
| Process Pressure/Maximum Overpressure Limit (bar) | Vacuum...40 |
| Process Pressure/Maximum Overpressure Limit (psi) | Vacuum ... 580 |
| Process Temperature (°C) | -40 to +150 |
| Process Temperature Range (°F) | -40 to +302 |
| Safety Approval | Overfill protection WHG |
| Sensor Length (m) | Up to 2 |
| Specialities | RFID TAG for easy identification, Plug and play functionalities |
| Supply/Communication (V) | 10 to 55 / DC-PNP 3-wire 19 to 253 AC or 19 to 55 DC / relays NAMUR |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
One measuring system for any liquid. Simple to use with plug and play functionality based on active sensor technologyBetter long-term stability compared to float switches
Repeatability of switching point
Universal use in all pumpable liquids
No need of maintenance
Use
Field of applicationOver 6 million installed Liquiphant point level switches in the field worldwide prove the day-to-day realiability of this device. With its active sensor technology you always be sure that your device is working correctly.
In addition there is no need of adjustment to different media.
Point level switch with extension tube for all liquids.
Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Sensor material: 316L
International explosion protection certificates, WHG
